AQUA SOLUTIONS has been a leading manufacturer in water and wastewater treatment last 17 years.

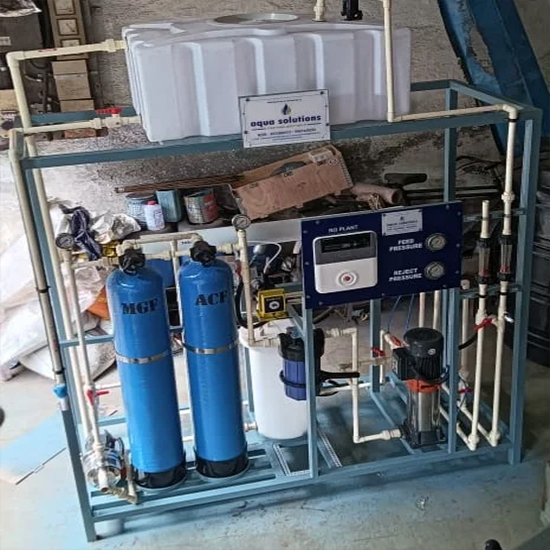

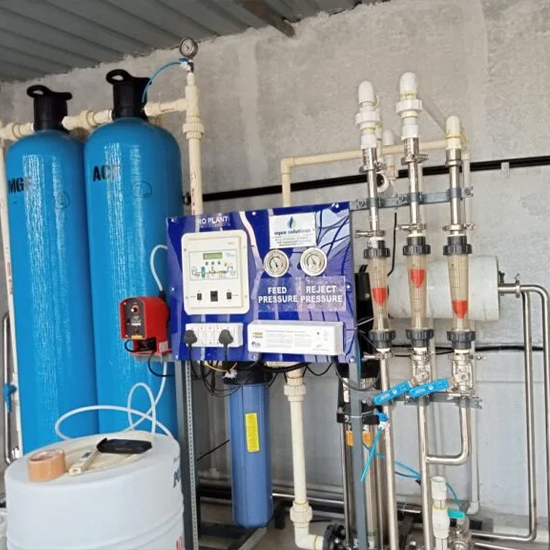

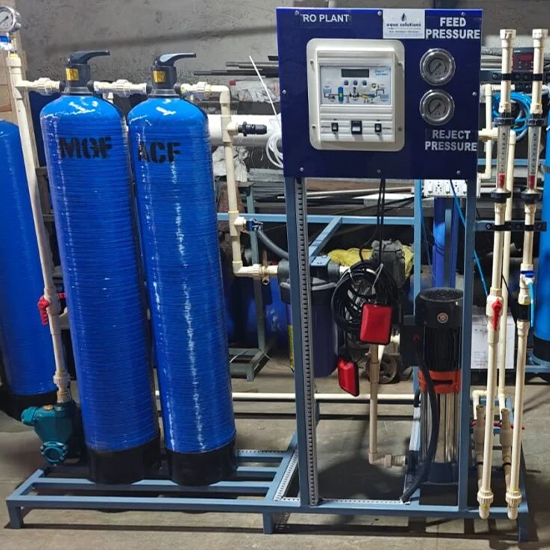

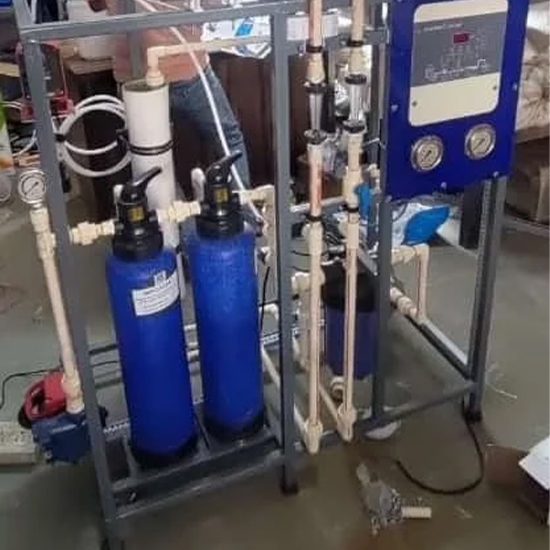

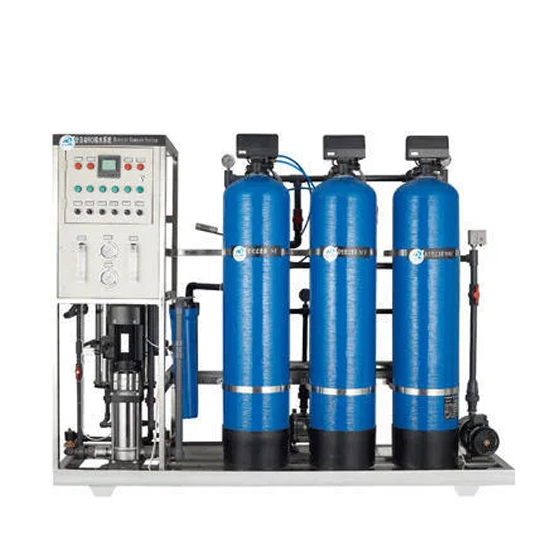

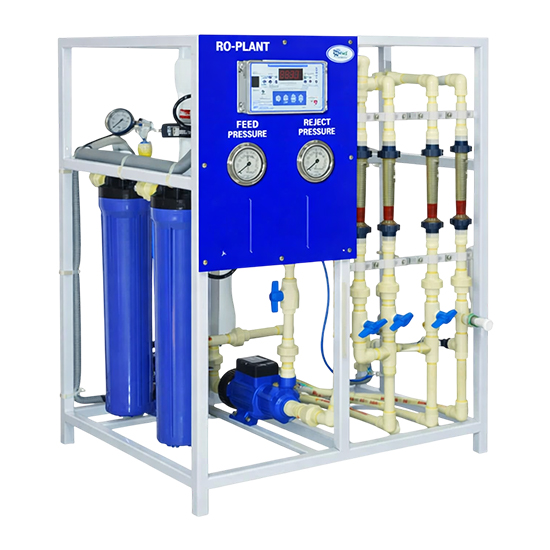

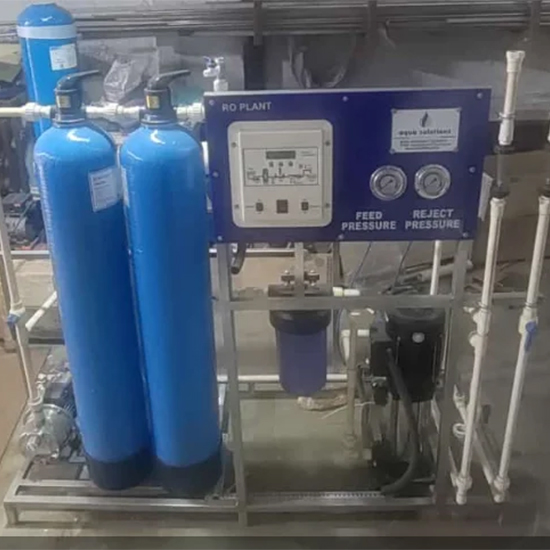

AQUA SOLUTIONS offers Reverse Osmosis Systems (RO systems) with composite membranes and RO housings for fiberglass or stainless steel membranes. The system is equipped with a pre-treatment system to ensure Reverse Osmosis membrane safety and maximum overall recovery. Equipped with a safety interlock to protect the Reverse Osmosis pump and membrane.
At Aqua Solutions we offer manual and automatic Reverse Osmosis Systems (RO systems) according to customer requirements.
Aqua Solutions provides EDI technology to obtain high purity water. EDI cells can meet stringent water quality standards such as USP standards. The RO permeate with a conductivity below 20 µs/cm is introduced into the EDI cell, and these aspirated ions are continuously ejected along with a small amount of RO permeate into the concentration chamber and finally to the drain.
AQUA SOLUTIONS RO systems can be designed for any water supply quality. The largest RO system. The total recovery rate will be 75-80%. Reverse osmosis systems are equipped with pressure sensors to measure the supply and discharge pressures of the reverse osmosis system. The reverse osmosis system consists of a hydrothermally disinfected reverse osmosis membrane with high rejection rate and low energy consumption.
Reverse Osmosis (RO) is a membrane-based water purification technology that removes dissolved salts, impurities, and contaminants from water by applying pressure greater than osmotic pressure, forcing water through a semi-permeable membrane.
Reverse Osmosis (RO) Systems produce high-purity water which removes dissolved solids, salts, ions, organics, and other contaminants. They achieve low TDS (Total Dissolved Solids) suitable for industrial, commercial, and domestic use. It ensure a safe and contaminant free Water which eliminate harmful microorganisms, heavy metals, and chemical impurities and improve water taste, odor, and appearance.
Reverse Osmosis (RO) Systems maintain consistent water quality which can deliver stable, reliable water quality regardless of variations in feedwater. It optimize purification efficiency with minimal energy consumption and decrease reliance on chemical treatment for water purification.
Reverse Osmosis (RO) Systems provide efficient desalination which convert Seawater or brackish water into potable water. It is widely used in coastal, marine, and arid regions. It prevents scale formation, corrosion, and fouling in utility equipment like Boilers, Cooling towers and Heat exchangers. Reduce chemical waste and minimize environmental impact compared to chemical purification methods.
This systems meet regulatory standards and ensure compliance with water quality guidelines such as WHO, EPA, USP for Purified Water (pharma).
Reverse Osmosis (RO) is a water purification process that uses a semi-permeable membrane to remove dissolved impurities, salts, and contaminants from water. It works by applying pressure greater than the natural osmotic pressure, forcing water molecules to move from a high-concentration solution (impure water) to a low-concentration solution (pure water).
Step-by-Step Working Process : Removes dirt, turbidity, suspended solids. Activated carbon removes chlorine and organic contaminants (protects membrane).
Step 2: High-Pressure Pumping : Water enters the RO membrane at 8 - 20 bar (depending on TDS). Pressure must exceed the osmotic pressure of the feed water.
Step 3: Membrane Separation :
The semi-permeable membrane allows :
Step 4: Post-Treatment (If required) :
| Osmosis (Natural Process) | Reverse Osmosis (Engineered Process) |
|---|---|
| Water flows from low solute concentration to high solute concentration | External high pressure is applied on the high-concentration solution. |
| No external pressure is required. | Forces water to move in the reverse direction of natural osmosis |
| Allows pure water to pass through the membrane; blocks impurities |
Main types of Reverse Osmosis (RO) Systems, classified based on their application, configuration, and functionality :
Major application industries of Reverse Osmosis (RO) systems, where RO technology is widely used for water purification and desalination :
| Pharmaceutical & Biotechnology | Food & Beverage Industry | Healthcare & Hospitals |
| Chemical & Petrochemical Industry | Municipal Water Treatment | Hospitality Sector |
| Metal Finishing & Electroplating | Textile & Dyeing Industry | Agriculture & Irrigation |
| Marine & Shipping Industry | Power Generation | Automotive Industry |
| Electronics & Semiconductor Manufacturing |
